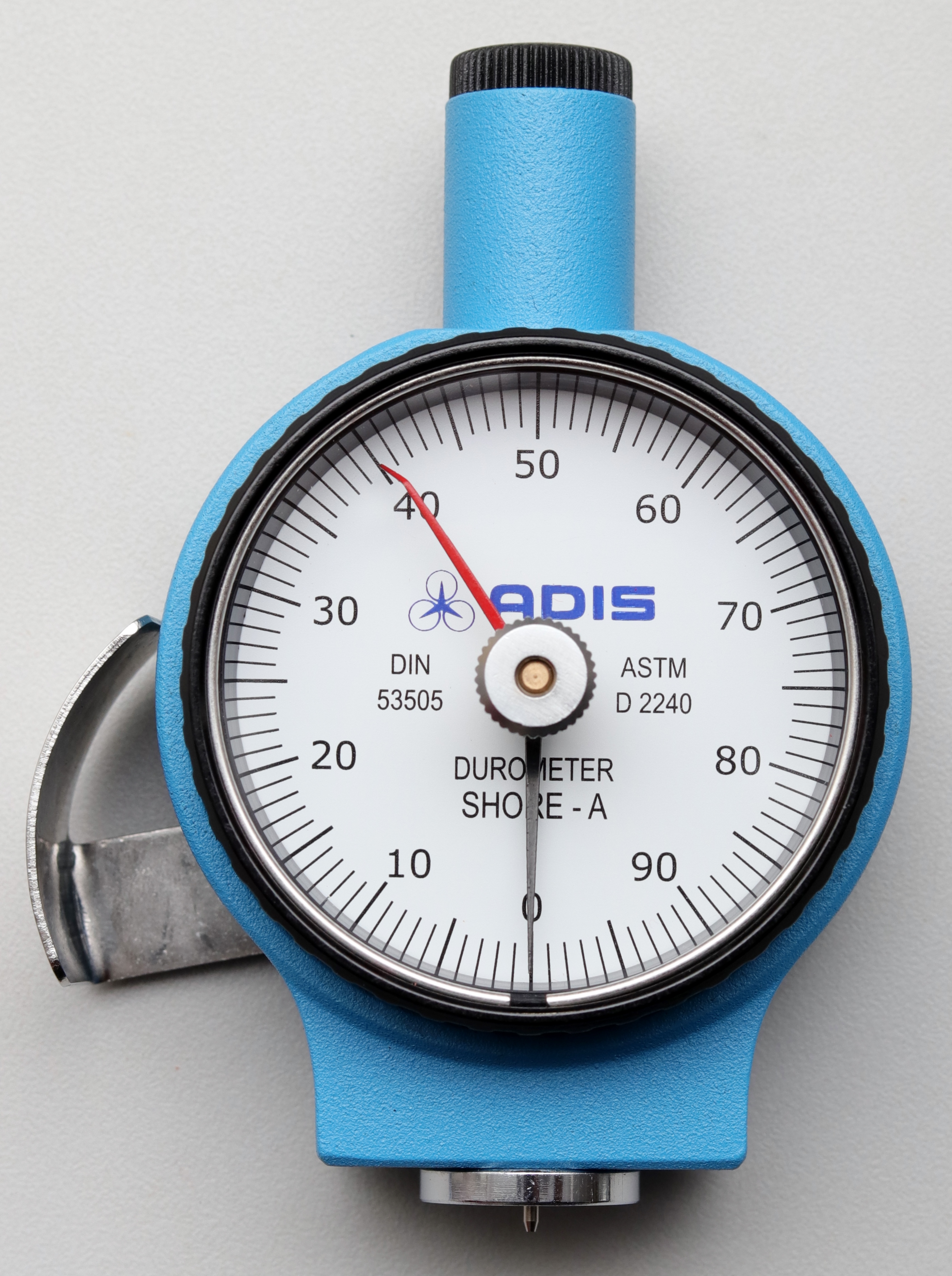

Shore A Export

SPECIFICATION :-

Standards ASTM D 2240 / DIN 53505
Indication range 0 - 100 Div. (360 degree dial scale)
Minimum indication 1 Shore
Accuracy ± 1 Shore
Indenter Design (mm) Truncated Cone with 35° Included Angle
Spring Forces (N) 8.046 N
Indenter Image
Pressure foot Dimension Ø 18 mm.
Outer Dimension (mm) Approx. (L×W×H)   63 x 39× 103
Weight (g) 200 g

Application

To measures the hardness of Neoprene, EPDM rubber, polyurethane, printing rollers, silicone, white PVC and other similar materials.
