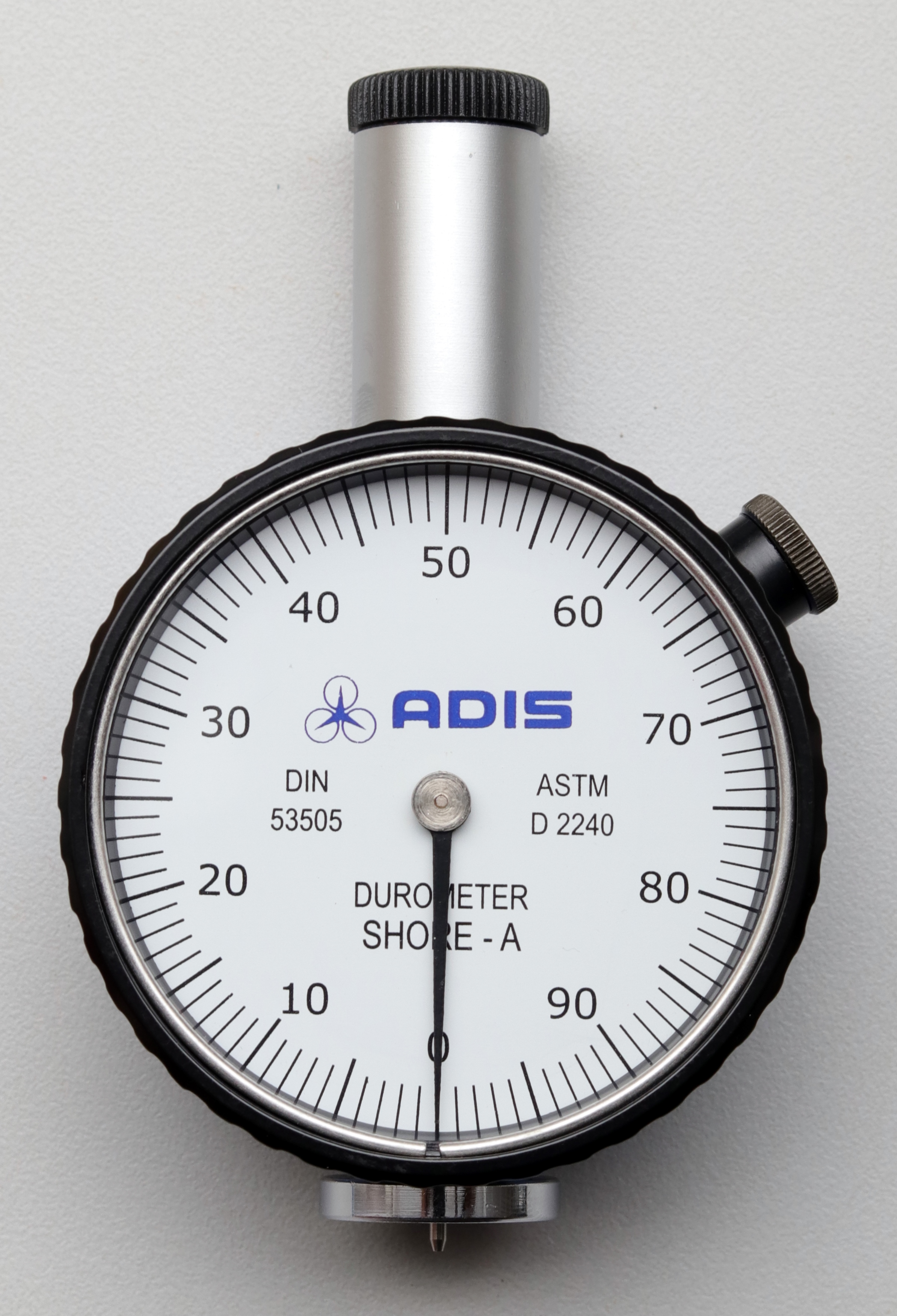

Shore A Basic WPP

SPECIFICATION:-

Standards                     ASTM D 2240 / DIN 53505
Indication range  0 - 100 Div. (360 degree dial scale)
Minimum indication 1 Shore
Accuracy  ± 2 Shore
Indenter Design (mm) Truncated Cone with 35° Included Angle
Spring Forces (N)  8.046 N
Indenter Image
Pressure foot Dimension Ø 18 mm
Approx. Outer Dimension (mm) (L×W×H)   60 x 32× 100
Weight (g) 175 g
Application                                                                                                                                           To measures the hardness of Neoprene, EPDM rubber, polyurethane, printing rollers, silicone, white PVC and other similar materials.
