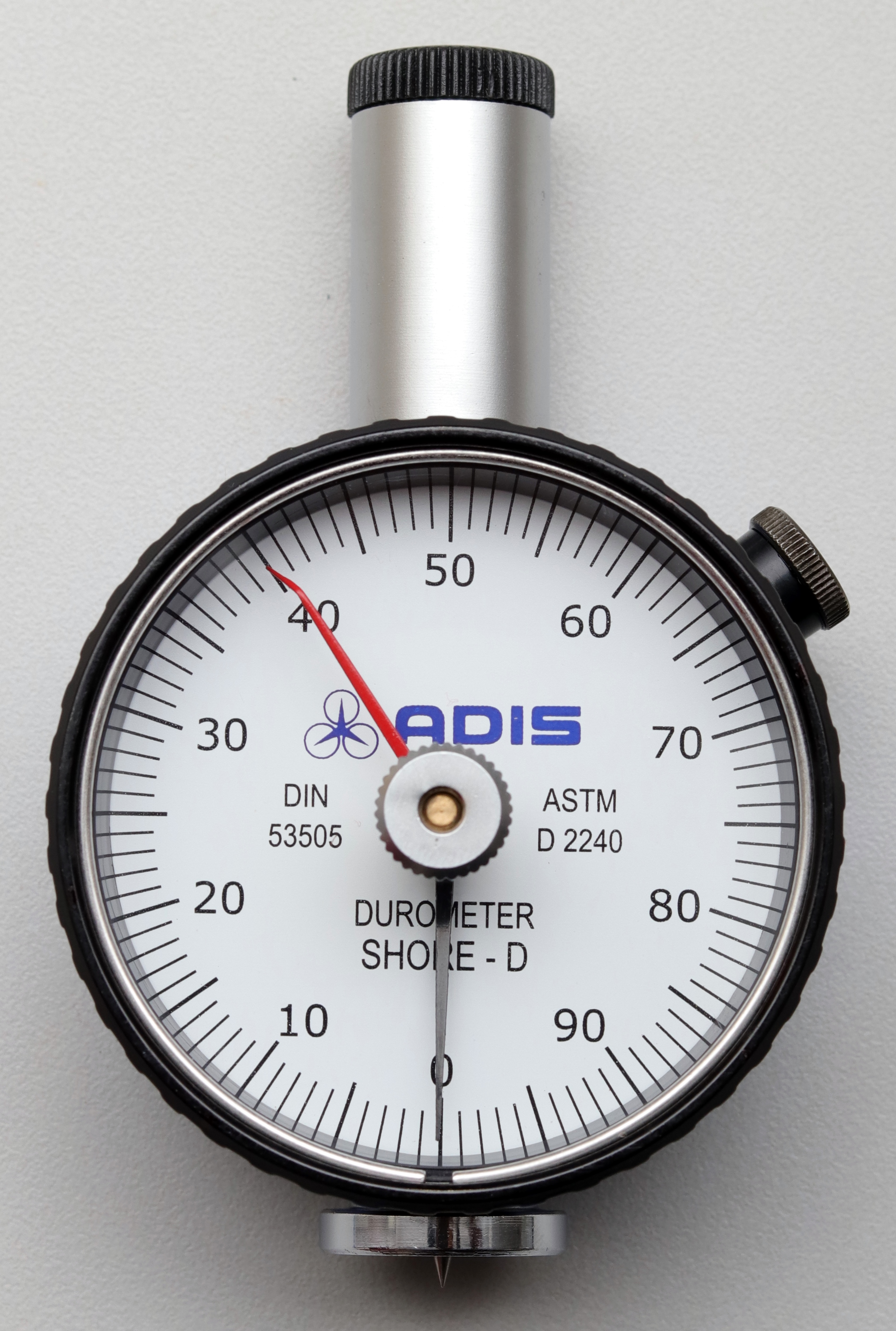

Shore D Basic

SPECIFICATION :-

Standards ASTM D 2240 / DIN 53505
Indication range 0 - 100 Div. (360 degree dial scale)
Minimum indication 1 Shore
Accuracy ± 2 Shore
Indenter Design  Conical 30° Included Angle
Spring Forces (N) 44.49 N
Indenter Image
Pressure foot Dimension Ø 18 mm.
Approx. Outer Dimension (mm) (L×W×H)   62 x 33× 95
Weight (g) 180 g
Application                                                                                                                                       To determining indentation hardness of Pipeline Coating, Hard Rubber, Acrylic, Delrin, Kevlar, PVC, Nylon, Lexan and Epoxies.
