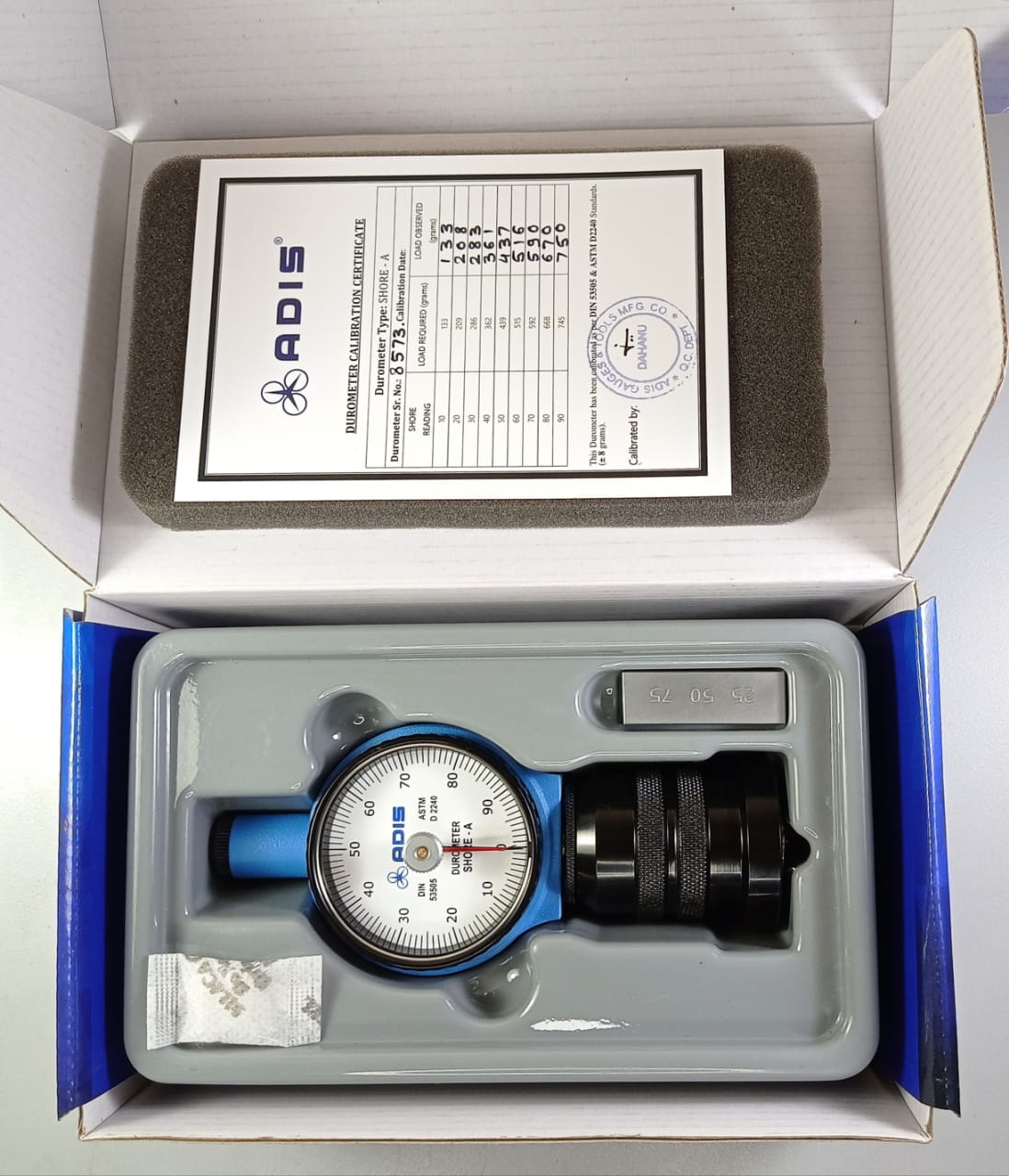

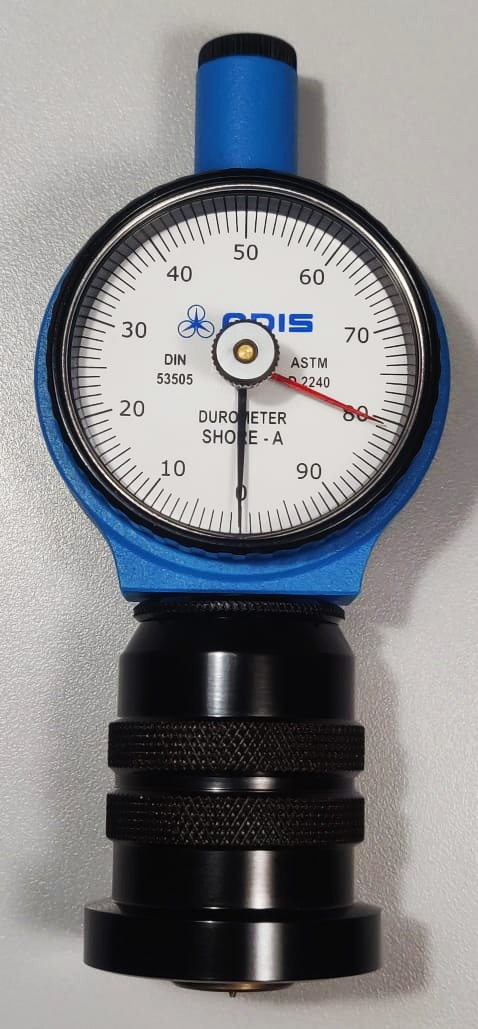

Durometer Shore A ( C. A. F. M. )

Product Selling Type: Domestic

130

Quantity:

SPECIFICATION

Standards

ASTM D 2240 / DIN 53505

Indication range

0 - 100 Div. (360-degree dial scale)

Minimum indication

1 Shore

Accuracy

± 1 Shore

Indenter Design (mm)

Truncated Cone with 35° Included Angle

Spring Forces (N)

8.046 N

Indenter Image

Pressure foot Dimension

Ø 18 mm.

Outer Dimension (mm)

Approx. (L×W×H) 63 x 39× 150

Net Weight (g)

400 g

Application

To measures the hardness of Neoprene, EPDM rubber, polyurethane, printing rollers, silicone, white soft PVC, and other similar materials in sheet form.
