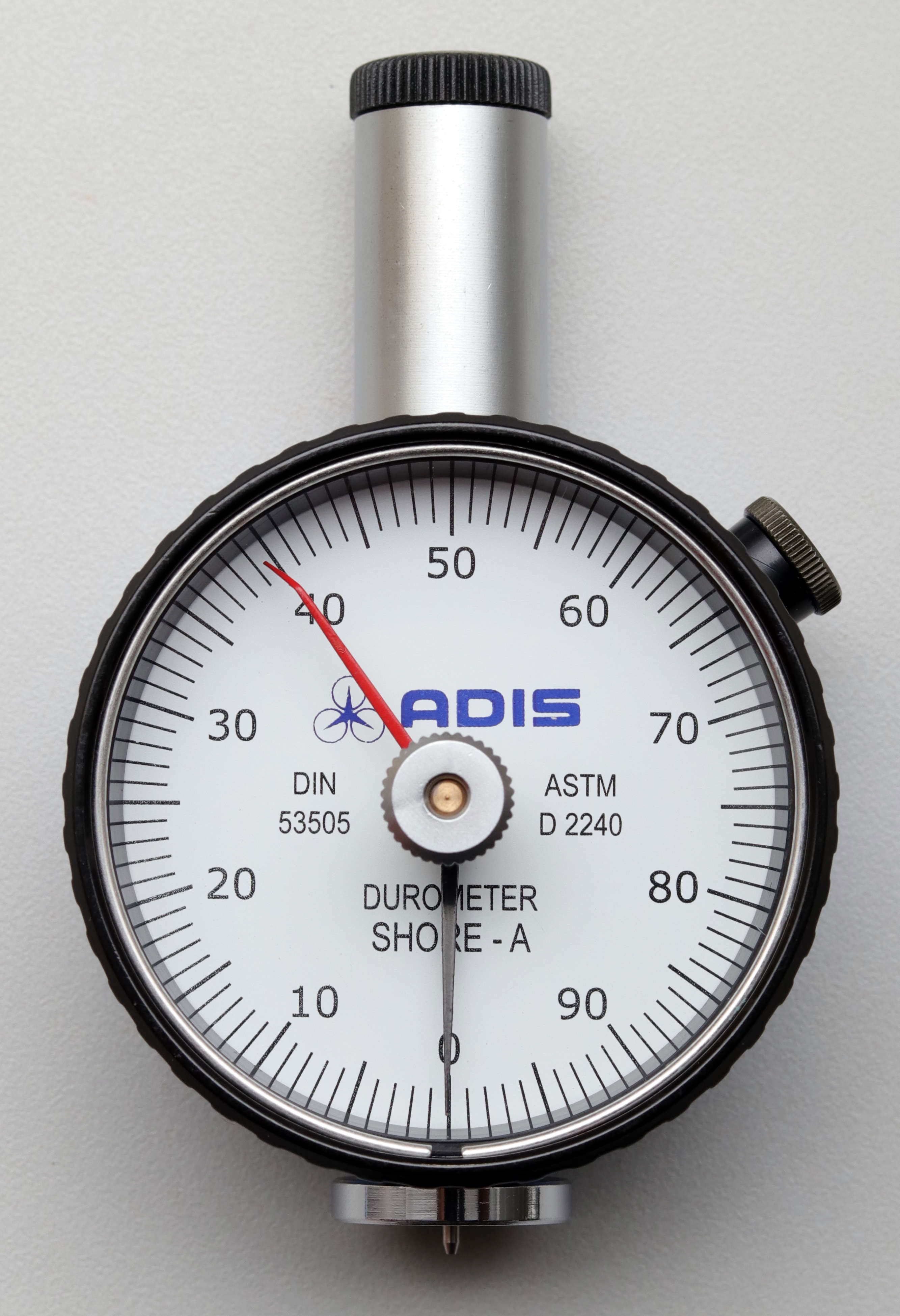

Shore A Basic

SPECIFICATION:-

Standards ASTM D 2240 / DIN 53505
Indication range 0 - 100 Div. (360 degree dial scale)
Minimum indication 1 Shore
Accuracy ± 2 Shore
Indenter Design (mm) Truncated Cone with 35° Included Angle
Spring Forces (N) 8.046 N
Indenter Image
Pressure foot Dimension Ø 18 mm.
Approx. Outer Dimension (mm) (L×W×H) -  58 x 33× 95
Weight (g) 180 g
Application                                                                                                                                            To measures the hardness of Neoprene, EPDM rubber, polyurethane, printing rollers, silicone, white PVC and other similar materials.
